Equipment for Japanese MarketGas-insulated Type Voltage Transformers for Power Supply/Demand (VCT)
Voltage transformers, which transform high voltage and large current into low, small, and easy-to-handle voltage and current, are used in connection with a supply meter as an electricity-trading device.
Feature
- The main insulation medium of these products is SF6 gas. And electricity-trading devices need to be certified based on the Measurement Act. Since we are a certification agency, please contact us for details.
60-154 kV voltage and current transformers for power supply/demand
These products are used mainly to measure large current.
Gas/gas GIS direct connection type
Conforming to JIS C 1736, accuracy class: 0.3 W, rated overcurrent: 31.5 kA/s

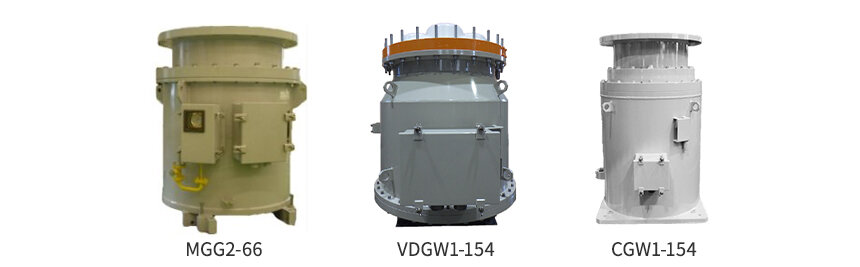

| Model | VT | CT | ||
|---|---|---|---|---|
| Rated primary voltage (V)/110 V | Rated burden (VA) | Rated primary current (A)/5 A | Rated burden (VA) | |
| MGG2-66 | 66000 | 3×50 | 50,200,500 | 2×15 |
| VDGW1-154 | 154000 | 50～2000 | 25 | |
| CGW1-154 | ||||
Note: The 154 kV VCT is VT/CT separation type.
Download
Download the catalog of Gas-insulated Type Voltage Transformers for Power Supply/Demand (VCT).
