Equipment for Japanese MarketMolding Type Voltage Transformer for Power Supply/Demand (VCT)
Voltage transformers, which transform high-voltage large current into low and easy-to-handle voltage and current, are used in connection with a supply meter as an electricity-trading device.
Feature
- Electricity treading devices need to be certified based on the Measurement Act. Since we are a certification agency, please contact us for details.

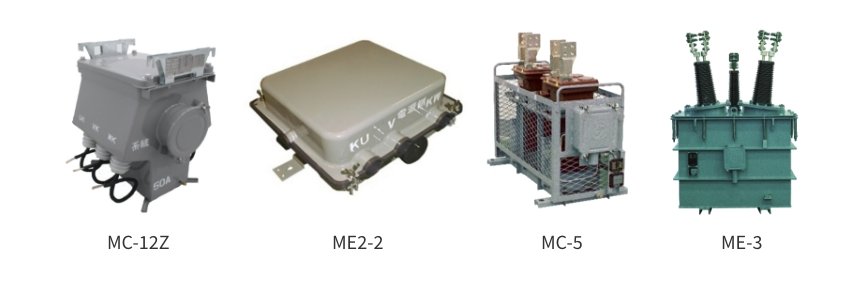

6-20 kV voltage and current transformers for power supply/demand
| Model and classification of indoor/outdoor use | Insulation class | Accuracy class | CT | VT |
|---|---|---|---|---|
| Rated current (A), burden (VA), overcurrent (intensity) | Rated current (V), burden (VA) | |||
| ME2-2･Outdoor use | - | 1.0W | 300/5 A, 2 × 5 VA, 40 times | - |
| MC-8Z･Outdoor use | 22/60 kV (Class 6 A) | 0.5W | 20/5 A, 2 × 15 VA, 150 times | 6600/110V ･ 2×15VA |
| 50/5A ･ 2×15VA ･ 75times | ||||
| MC-16Z ･Outdoor use | 100/5A ･ 2×15VA ･ 75times | |||
| 200,300/ 5A ･ 2×15VA ･ 40times | ||||
| MC-17Z･Outdoor use | 400,500/5A ･ 2×15VA ･ 40times | |||
| MC-5･Indoor use | 600～1000/5A ･ 2×15VA ･ 40times | |||
| ME-3･Indoor use | 50/150 kV (Class 20 A) | 0.3W | 50, 200/5 A, 2 × 25 VA, 25 kA 1 second | 22000/110V ･2×50VA |
Download
Download the catalog of Molding Type Voltage Transformer for Power Supply/Demand (VCT).
