Equipment for Japanese MarketOil-immersed Type Voltage Transformers for Power Supply/Demand (VCT)
Voltage transformers, which transform high voltage and large current into low, small and easy-to-handle voltage and current, are used in connection with a supply meter as an electricity trading device.
Feature
- The main insulation medium of these products is electrical insulation oil (as certified under the Fire Service Act). Electricity treading devices need to be certified based on the Measurement Act. Since we are a certification agency, please contact us for details.
30-70 kV voltage and current transformers for power supply/demand
These products are used mainly to measure large currents.

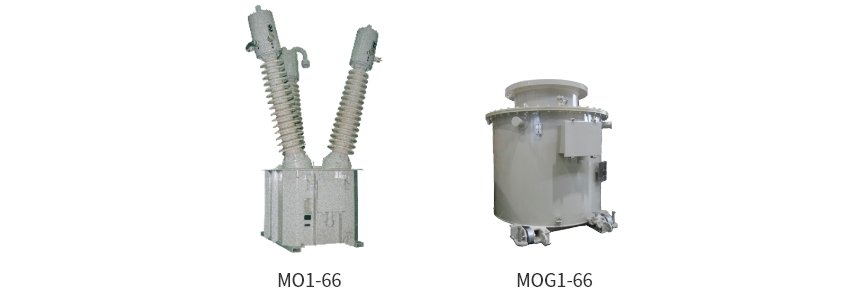

Oil insulator type (stationary type)
Conforming to JIS C 1736, accuracy class: 0.3 W, rated overcurrent: 31.5 kA/s
| Model | VT | CT | ||
|---|---|---|---|---|
| Rated primary voltage (V)/110 V | Rated burden (VA) | Rated primary current (A)/5 A | Rated burden (VA) | |
| MO1-11 | 11000 | 2×50 | 100～1200 | 2×25 |
| MO1-22 | 22000 | |||
| MO1-33 | 33000 | |||
| MO1-66 | 66000 | |||
| MO1-77 | 77000 | |||
Oil/gas GIS direct connection type
Conforming to JIS C 1736, accuracy class: 0.3 W, rated overcurrent: 31.5 kA/s
| Model | VT | CT | ||
|---|---|---|---|---|
| Rated primary voltage (V)/110 V | Rated burden (VA) | Rated primary current (A)/5 A | Rated burden (VA) | |
| MOG1-33 | 33000 | 2×50 | 100～1200 | 2×25 |
| MOG1-66 | 66000 | |||
| MOG1-77 | 77000 | |||
Oil/oil GIS direct connection type
Conforming to JIS C 1736, accuracy class: 0.3 W, rated overcurrent: 31.5 kA/s
| Model | VT | CT | ||
|---|---|---|---|---|
| Rated primary voltage (V)/110 V | Rated burden (VA) | Rated primary current (A)/5 A | Rated burden (VA) | |
| MOO1-66 | 66000 | 2×50 | 100～1200 | 2×25 |
Download
Download the catalog of Oil-immersed Type Voltage Transformers for Power Supply/Demand (VCT).
