EV ChargingQuick Charger for EV 50kW/30kW
FOR USE IN JAPAN ONLY
Please contact us if you are interested in this product for using in Japan.
About quick charger
A quick charger is an equipment for charging the battery of electric vehicle (EV) in a short time. There are two types of chargers: "normal charger" and "quick charger". A "normal charger" charges the battery with AC output (200 V) and a "quick charger" charges it with DC output (150-450 V). TAKAOKA TOKO manufactures and sells quick chargers.
Largest domestic sales in the industry
We have a total sale of approx. 5,000 quick chargers in Japan, and many are installed in highway service and parking areas, convenience stores, roadside rest areas, and the like.
* As of March 2024
Compliant with CHAdeMO
Our product is CHAdeMO compliant, and is compatible with domestic and overseas EVs that are CHAdeMO compliant. Since the establishment of the "CHAdeMO standard", our company, which has been involved in the development of quick chargers, has been highly evaluated for its high quality and reliability, and has been adopted by many customers.
CHAdeMO Association Official Website
Reliable nationwide after-sales service
Even in the case of a problem, MintWave Co., Ltd.(our consolidated subsidiary) provides after-sales service anywhere in the nation.
Various functions
Supports cloud function, color LCD screen, CHAdeMO 2.0.

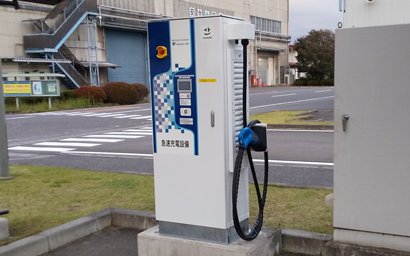

Example of installation
Product descriptions
| Model | HFR1-50B9 | HFR1-30B9 | ||
|---|---|---|---|---|
| Rated Output | 50kW | 30kW | ||
| CHAdeMO | Ver 2.0 | |||
| Input Voltage | 3-phase 200VAC | |||
| Input Frequency | 50Hz／60Hz | |||
| Output Voltage | 150 to 450VDC | |||
| Rated Output Current | 125A | 75A | ||
| Efficiency | 90% or more | |||
| Protection Class | IP44 | |||
| Size |
W665mm(880mm including connector) H1734mm D407mm |
|||
| Mass | 270㎏ | 240㎏ | ||
| Ambient Temperature | -10 to 40℃ | |||
| Ambient Humidity | 30 to 90% | |||
| Billing System | Enegate (other systems will be also supported) | |||
