Equipment for Japanese MarketMolded Bushing Type Instrument Transformers, Formed Parts and Others
These products made of epoxy resin can be used for breakers and boards.
Feature
- We can design and fabricate instrument transformers and resin moldings according to the needs of customers.
Other

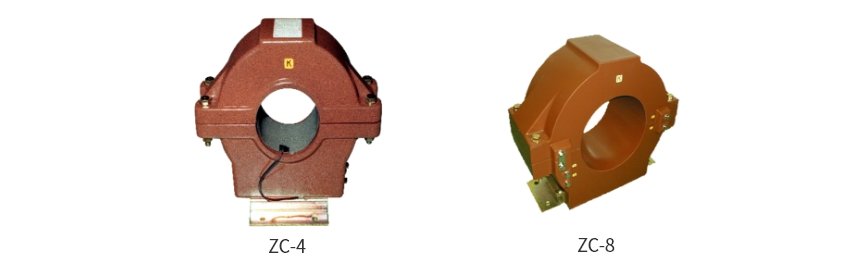

| Model | Inner diameter [mm] | Rated primary current [A] | Rated burden [Ω] | Zero-phase primary/secondary current [mA] |
|---|---|---|---|---|
| ZC-4 | 110 | 400, 600, 750 | 10 | 200/1.5 |
| ZC-8 | 190 | 1000, 1200 |
Exciting impedance: > 10 Ω, Rated overcurrent factor: n0 > 2000, Accuracy class: Class L
Download
Download the catalog of Molded Bushing Type Instrument Transformers, Formed Parts and Others.
